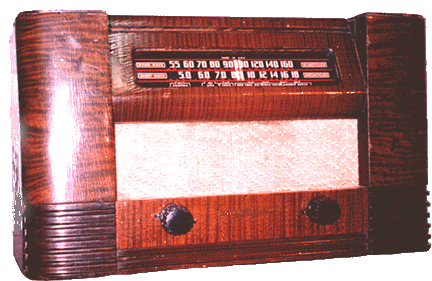

General Electric GE X-225V  (1942)

A.C.  /MW and One SW Band - Wood Cabinet

This nice old radio was an offer of my friend Josť Luis . This radio was in the garbage . I only got the scheme from Don Black in Australia !
We think this radio came to Portugal during the second world war with some American or Portuguese soldier.
Only two capacitors and one tube were substituted.

Valves :   35Z5GT ( Rectifier) ;  12SA7 ( mixer ) ;  12SK7 ( if amp ) ; 12SQ7( if ampl + rectifier) ;  50L6GT (output ).
